Why buy the ARIENS ARROW 32 32″ Stand-On Mower?
- Powered by a high-performance Kawasaki® FS600 V-Twin 603cc engine
- Robust 81cm (32″) fabricated side-discharge deck made from 7-gauge steel
- Versatile folding operator platform for stand-on comfort or walk-behind control
- Commercial-grade Hydro-Gear® ZT-3100 transaxles for precise manoeuvrability
- 15 cutting positions (3.8cm – 12.7cm) for a precise, professional finish
- Low centre of gravity for enhanced stability on slopes and uneven ground

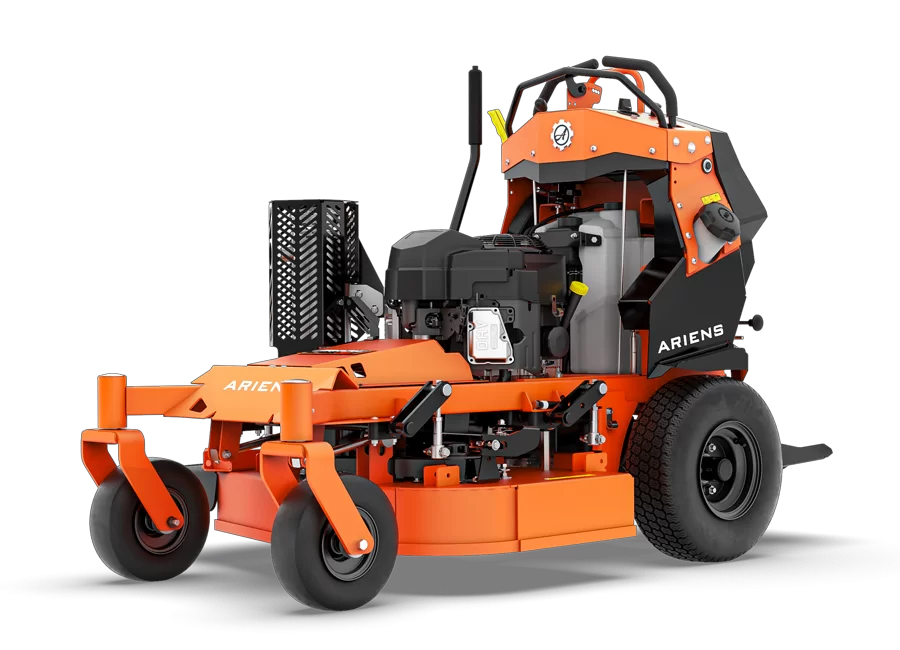

The Ariens ARROW 32 is a professional-grade stand-on mower designed to deliver exceptional speed, agility, and a high-quality cut, particularly in complex and tight spaces. It is the ideal choice for commercial landscapers, service providers, and grounds maintenance teams managing medium to large areas with obstacles, narrow gateways, or intricate layouts.
Professional Power and Performance
At the heart of the ARROW 32 is a premium Kawasaki® FS600 V-Twin engine, renowned for its power, performance, and fuel efficiency. This 603cc engine provides ample torque to handle tough mowing conditions, while the commercial-grade Hydro-Gear® ZT-3100 transaxles ensure smooth, responsive control and a top forward speed of 12.8 km/h (8 mph), allowing operators to cover ground quickly and efficiently.
Designed for Operator Comfort and Versatility
Stand-on mowers offer significant ergonomic benefits, and the ARROW 32 is no exception. The upright operating position provides an excellent view of the cutting deck and surrounding area, reducing back strain and fatigue over a long working day. A key feature is the folding, suspended operator platform. This allows the mower to be instantly converted from a stand-on to a walk-behind machine, providing maximum versatility in low-clearance passages or for precise trimming. All operating controls are ergonomically positioned for easy reach, and the adjustable speed control enables the user to limit the maximum speed in confined environments.
Durable Deck and Precise Cutting
The ARROW 32 is equipped with a compact 81cm (32″) side-discharge mower deck. Constructed from heavy-duty 4.6mm (7-gauge) welded steel, it is built to withstand the rigours of daily commercial use. The deck lift system, a combination of a foot pedal and hand lever, makes adjusting the cutting height effortless across 15 distinct positions, from 3.8cm to 12.7cm. For those preferring to recycle clippings, an optional mulching kit is available to convert the deck for a fine, fertilising finish.
An Authorised UK Ariens Dealer
Sims Garden Machinery is an established, authorised UK dealer for Ariens, with over 100 years of experience in the industry. When purchasing an Ariens mower from Sims, customers receive more than just a box. The machine will be fully assembled and inspected by trained mechanics through a comprehensive Pre-Delivery Inspection (PDI). For local customers in Warwickshire and the surrounding areas, this includes free delivery on dedicated vehicles and a full handover from trained sales staff to ensure complete confidence in operating the machine. This commitment to service can be experienced first-hand at the Stratford-upon-Avon showroom, where expert advice is always available.
Our team is here to help. Contact us today for expert advice.
Technical Specification
| Model Number | 994302 |
| Engine | Kawasaki® FS600 V-Twin OHV |
| Engine Displacement | 603 cm³ |
| Drive System | Hydro-Gear® ZT-3100 Transaxles |
| Maximum engine Power | 12.7 kW / 17 hp at 3,600 rpm |
| Fuel Capacity | 22.7 L |
| Max. Speed Forward / Backward | 12.8 km/h / 4.8 km/h (8 mph / 3 mph) |
| Deck Type | Side discharge |
| Mulching Kit | Optional |
| Deck Material | 4.6 mm sheet steel |
| Deck Construction | Welded |
| Deck Lift System | Foot pedal and hand lever |
| Number of blades | 2 |
| Spindle Material | Forged Aluminium |
| Spindles drive | V-belt |
| Spindle Clutch | Electric Ogura® |
| Cutting Width | 81 cm (32″) |
| Cutting Heights | 3.8 cm – 12.7 cm (1.5″ – 5.0″) |
| Cutting Positions | 15 |
| Front Wheels | 11 x 4.00-5 semi-pneumatic |
| Rear Wheels | 18 x 6.5 – 8 |
| Driver Platform | Suspended, foldable |
| Hour Meter | Standard |
| Weight | 351 kg |
| Length | 160 cm (platform folded); 190 cm (platform unfolded) |
| Width | 114 cm w/ chute; 84 cm w/ mulch kit |
| Height | 122 cm |
| Limited Warranty Machine | 5 years / 1000 hours, no hour limit in the first 2 years |
| Warranty Battery (Years) | 3 |
Why buy from Sims Garden Machinery?
Authorised main dealer
We are authorised dealers for leading brands, meaning genuine parts, manufacturer-approved training, and warranty support you can rely on.
Real people, real support
No call centres. No ticket systems. Just a knowledgeable local team you can speak to when you need help.
Expert advice — not pushy sales
Our team are trained mechanics and product specialists, so you get honest, practical advice based on how you’ll actually use the machine.
Established, independent family business
We’re a long-standing independent dealer with deep roots in the local area — built on reputation, repeat customers, and word of mouth.
Frequently Asked Questions
Frequently Asked Questions
Who is the Ariens ARROW 32 best suited for?
The Ariens ARROW 32 is designed for commercial landscapers, professional service providers, and municipalities who need to maintain medium to large, complex areas. Its compact size and agility make it ideal for grounds with tight spaces, gateways, or obstacles where larger ride-on mowers cannot operate efficiently.
What is the main benefit of a stand-on mower like the ARROW 32?
Stand-on mowers offer excellent visibility of the mowing area, reduced operator fatigue compared to walk-behinds, and are highly manoeuvrable. The ARROW 32’s folding platform adds versatility, allowing it to be used as a walk-behind in very low-clearance areas. They are also easier to transport and store than many traditional ride-on mowers.
Can the Ariens ARROW 32 handle sloped or hilly terrain?
Yes, the ARROW 32 is engineered with a low centre of gravity for enhanced stability on inclines. Ariens specifies a safety limit of 20° for its stand-on mowers, making it suitable for hilly and undulating terrain where safe operation is paramount.
What is the warranty on the Ariens ARROW 32?
The machine is covered by a comprehensive 5-year or 1000-hour limited warranty. For the first two years of ownership, there is no hour limit, providing excellent peace of mind for professional users who depend on their equipment daily.
